Horizontal Directional Drilling
Welcome to our Horizontal Directional Drilling (HDD). At DustcomHDD, we specialize in providing top-quality HDD solutions for a wide range of underground projects.
Revolutionizing Trenchless Technology
DustcomHDD is a dynamic and innovative company based in South Africa, dedicated to providing top-quality trenchless technology services. As a 100% black-owned and managed company, we are committed to excellence and professionalism in all aspects of our work. We understand the importance of minimizing disruption to the environment and existing infrastructure. That's why we specialize in trenchless technology, specifically horizontal directional drilling, which allows us to install underground utilities with minimal excavation, reducing environmental impact and saving time.
What is Horizontal Directional Drilling?
Horizontal Directional Drilling (HDD) is a trenchless technology method used to install underground utilities, such as pipes, cables, and conduits, without the need for extensive excavation. Unlike traditional drilling methods that require vertical or angled boreholes, HDD involves drilling a pilot hole horizontally along a predetermined path. This pilot hole is then enlarged using reaming tools to accommodate the utilities.
Advantages of Horizontal Directional Drilling
HDD offers several advantages over conventional drilling techniques. Firstly, it is environmentally friendly as it minimizes the disruption caused by excavation, reducing the impact on ecosystems and preserving natural habitats. Additionally, HDD eliminates the need for extensive restoration work, saving both time and money.
The ability to install utilities under obstacles like rivers, roads, and existing infrastructure is another significant advantage of HDD. It allows for the efficient and cost-effective installation of pipelines and cables in urban areas, where open trenching would be disruptive and expensive.
Applications of Horizontal Directional Drilling
Horizontal directional drilling finds application in various industries and projects. In the telecommunications sector, HDD is widely used for installing fiber optic cables, enabling high-speed internet connectivity in urban and rural areas. It also plays a crucial role in oil and gas pipeline installations, providing a safer and more efficient method for crossing water bodies and challenging terrains.
Water and sewer projects benefit from HDD as well, allowing for the installation of water and wastewater pipelines with minimal disruption to existing infrastructure. HDD is also employed in utility projects, such as the installation of power and gas lines, ensuring uninterrupted services to residential and commercial areas.
The Role of Dustcom HDD in Horizontal Directional Drilling
Dustcom HDD is a specialized provider of reliable and efficient horizontal directional drilling (HDD) services. With a team of highly skilled professionals, we possess the expertise to execute complex HDD projects with precision. We pride ourselves on utilizing state-of-the-art equipment and advanced techniques to ensure optimal drilling performance and accurate borehole placement.
At Dustcom HDD, we prioritize safety, quality, and customer satisfaction in every project we undertake. We understand the importance of clear communication and collaboration with our clients throughout the project lifecycle. From initial project planning and design to execution and post-installation support, our comprehensive approach ensures that every aspect is carefully addressed.
1. Pilot Hole
The first stage of the directional drilling process involves drilling a small diameter pilot hole. The drilling fluid, typically pumped through the drill pipe, reaches the drill bit where high-pressure jets and the bit grind the soils in front of the drill stem. Tracking of the pilot hole can be done using various methods, depending on the size and complexity of the shot. Smaller shots may use a walkover guidance tool, while larger shots employ a cord line magnetics system.
These methods utilize a transmitter tool near the drill head to provide continuous readings of depth, alignment, and percentage slope. The speed of drilling the pilot hole depends on steering requirements and the texture of the existing soil. Once the drill reaches the exit point, the beacon housing and bit are replaced with a reamer for the next stage.
2. Pre-Reaming
In the second stage, the pilot hole is pre-reamed to enlarge it to a size suitable for the safe installation of product lines or HDPE pipes. A reamer is used to expand the hole in a circular motion, making it larger. Pre-reaming speeds are determined based on the conditions of the pilot hole. To ensure a clean and stable hole, bentonite and other chemicals may be used. Bentonite helps create a “cake layer” on the outer side of the hole during pre-reaming, enhancing hole stability.

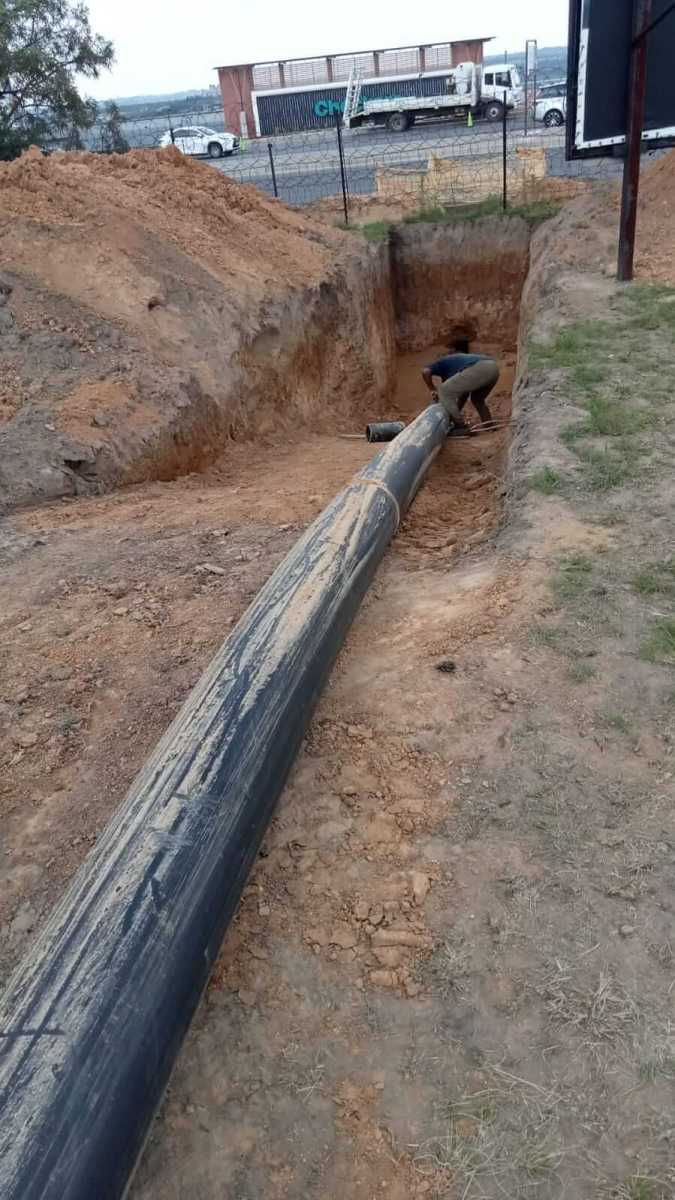

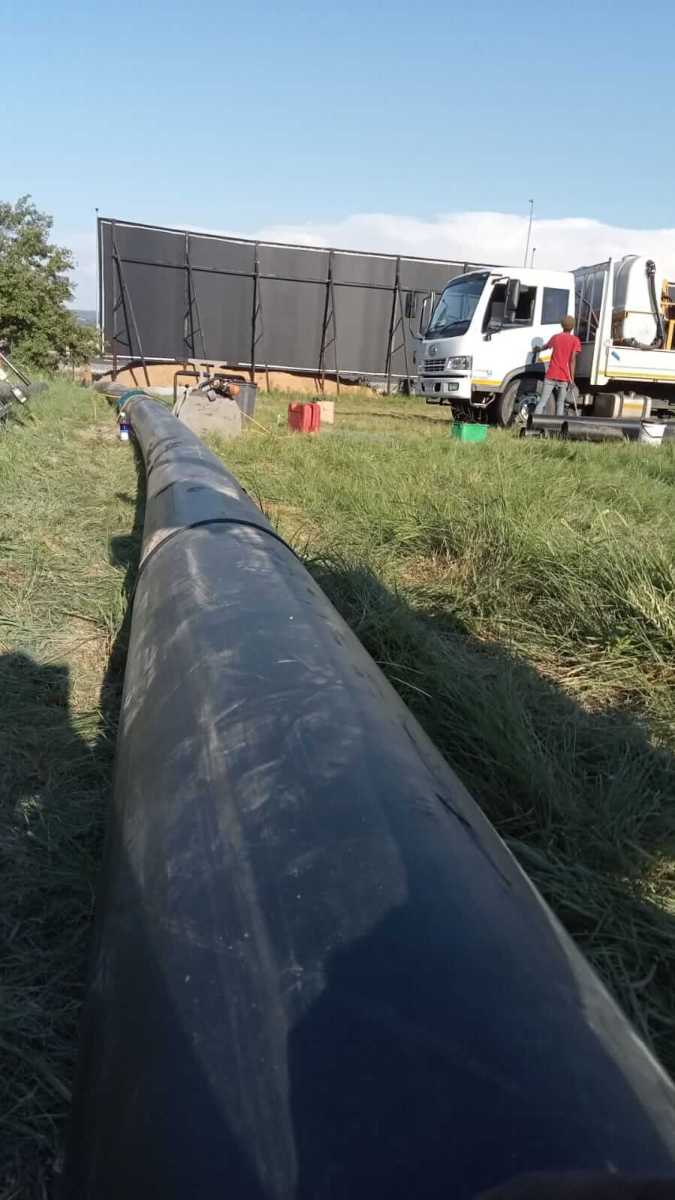

3. Pipe Pullback
The final stage involves pulling the pipe back into the pre-reamed hole. The drill rod and reamer can be connected to a swivel to facilitate the process. As the product pipe is pulled into the drill hole, drilling fluids are pumped downhole to provide lubrication. This helps in smooth and controlled pipe pullback.
Factors to Consider for Horizontal Directional Drilling (HDD)
When determining whether to employ horizontal directional drilling (HDD) for a project, several factors should be taken into consideration:
- Depth of the Pipe – Is the pipe located at a depth of five feet (1.5m) or deeper? HDD is often preferred when the pipe needs to be installed at significant depths.
- Water Table – Is the pipe situated below the water table? If so, HDD can be a suitable method to install the pipe without disturbing the water table.
- Soil Stability – Is the soil in the area unstable? HDD is particularly advantageous in unstable soil conditions, as it minimizes the need for extensive excavation.
- Congestion of Utilities – Is the underground area congested with various existing utilities? HDD allows for precise navigation through congested areas, minimizing the risk of damage to existing infrastructure.
- Urban or Busy City Area – Is the project located in a busy city area? HDD is often preferred in urban environments where open trenching may cause significant disruption to traffic and other activities.
- Crossing Roadways, Railroads, or Rivers -Does the installation involve crossing roadways, railroads, or rivers? HDD offers an efficient and cost-effective method to install pipes beneath such obstacles without the need for disruptive excavation.
- Residential Areas – Is the installation taking place in a residential area? HDD is a suitable choice for residential areas where minimizing disruption to the neighborhood and preserving aesthetic appeal are important.
- Long Drill Installations – Are the drill installation lengths over 60 meters? HDD can handle longer drill installations effectively and efficiently.
Benefits of Horizontal Directional Drilling
Horizontal directional drilling (HDD) offers numerous advantages that make it a preferred method in various applications. The key benefits of HDD include:
- Enhanced Durability – It utilizes durable materials with longer lifespans and ensures more accurate placement, minimizing damage during installation. In certain areas, such as crossings beneath rivers or bridges, pipes are susceptible to wear and tear, reducing their lifespan by up to 50% or 75%. HDD allows for easier installation beneath these obstacles, such as rivers and driveways, protecting the pipes and utility lines and enhancing their overall durability.
- Cost Saving – HDD provides cost savings in multiple ways. Firstly, it is a faster method, reducing project duration and associated costs. Additionally, HDD generates less displaced soil and dust, minimizing the need for extensive cleanup and restoration. Since HDD requires fewer operators, there are additional savings in terms of manpower. Furthermore, HDD eliminates the need for heavy equipment, such as backhoes, resulting in reduced equipment rental costs.
- Efficient Installation – HDD significantly speeds up the installation process compared to traditional open-cut methods. This efficiency translates into quicker completion of the work. Moreover, HDD causes less disruption to the surroundings, generating less soil displacement and reducing the amount of material that needs to be reburied or disposed of.
- Minimal Disruption – HDD addresses two major factors that can cause disruption. Firstly, it minimizes disruption to landscaping as it displaces less soil and does not require extensive digging down into properties. This allows for the preservation of existing landscapes. Secondly, HDD allows for a quicker return to normalcy in terms of work and daily life, as the method causes minimal disturbance and allows activities to resume more rapidly.
- Streamlined Permitting Process – HDD often requires fewer permits compared to traditional drilling methods. Its reduced impact and disruption make the permitting process less complex and time-consuming. As HDD involves less extensive excavation and does not require traffic blockages like conventional drilling, it is typically approved more smoothly.

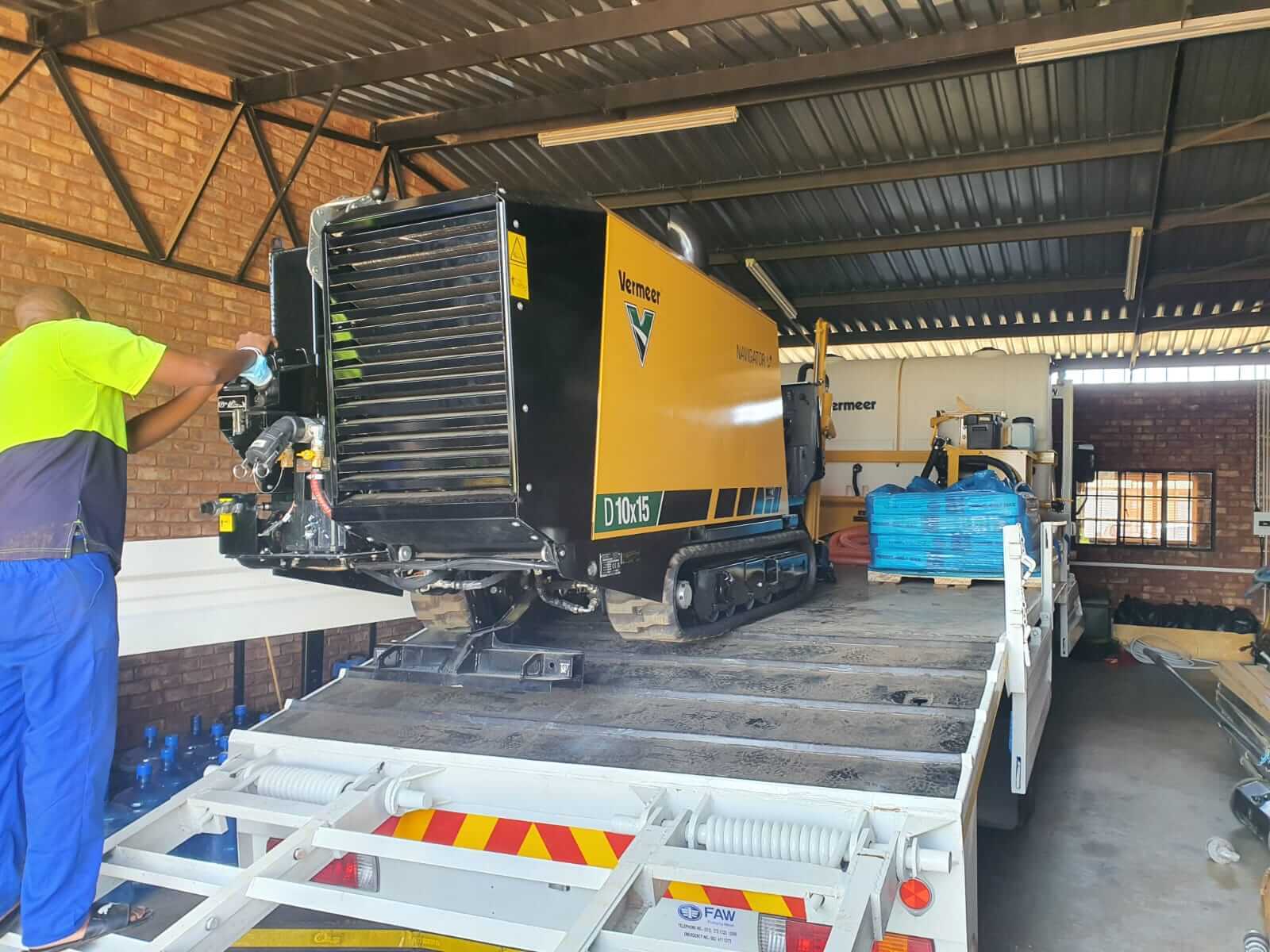

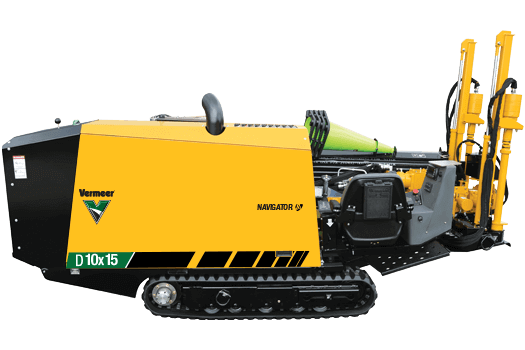

Hire Our D10x15 S3 Navigator® Horizontal Directional Drill
Looking for a reliable and cost-efficient solution for small service installations? Look no further than the D10x15 S3 Navigator® horizontal directional drill.
Designed to boost your team’s productivity, this drill allows you to seamlessly move from one project to the next with greater efficiency. Experience significant improvements in horsepower, speed, and noise reduction, enabling you to install more products and HDPE pipes in the ground in record time.
Ready to boost your drilling operations? Hire our machine today and experience the benefits of the D10x15 S3 Navigator® for yourself
